TPL-210 Silent Power

Name: TPL-210 Silent Power
Brand: TPL Firewall
SKU: TPL-210
Availability: InStock

Six-port 2.5G fanless firewall appliance with Intel Core i3-10110U (4.1 GHz turbo), optional PoE on LAN3–6, and M.2 B-Key for 4G/5G WAN failover. The go-to platform for SMB networks requiring multi-WAN resilience.

2C / 4T

CPU Cores

6 × 2.5G

LAN Ports

5G Ready

M.2 B-Key

64 GB

Max RAM

Request Quote Full Specifications Compare Models

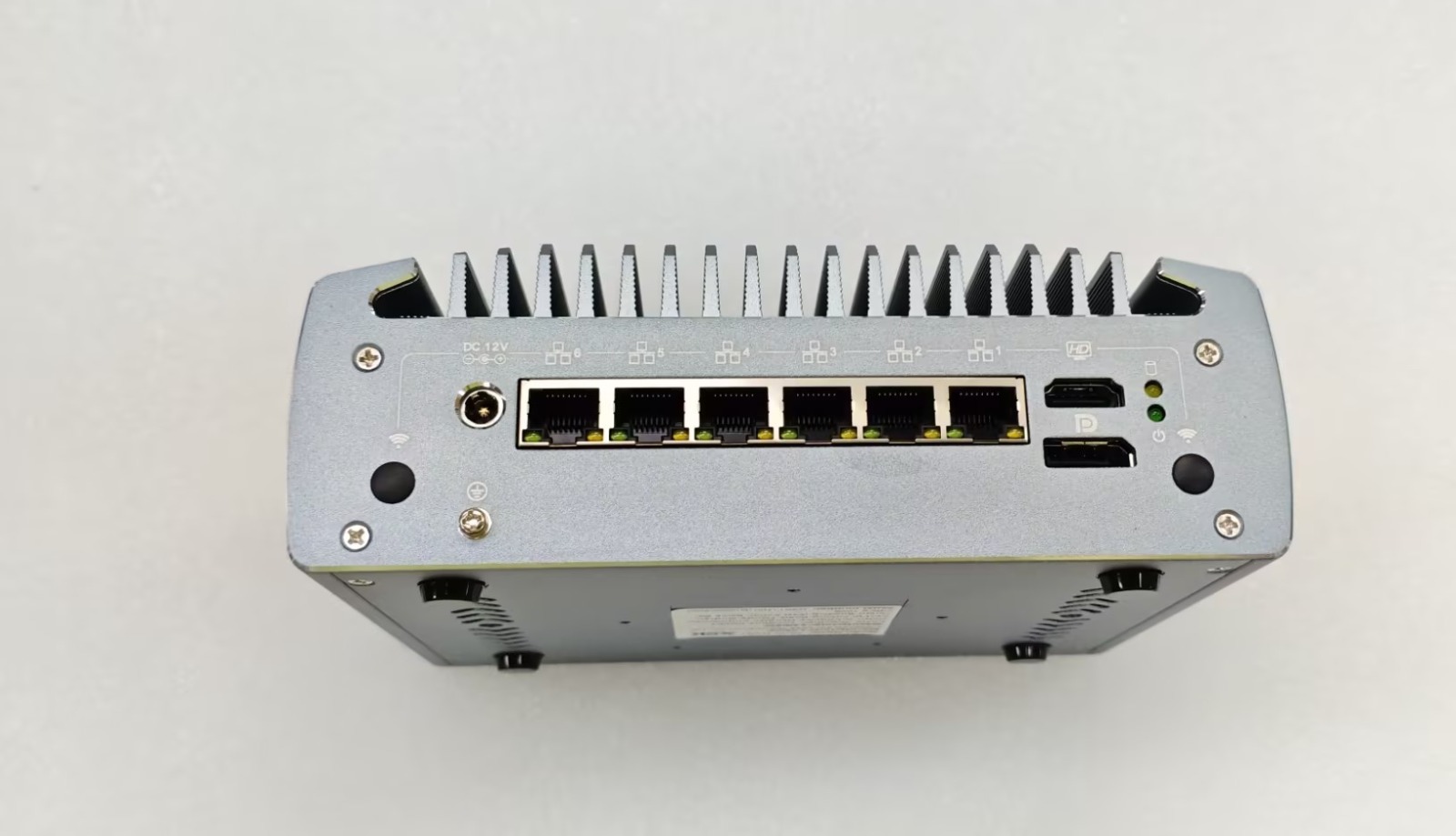

TPL-210 Silent Power rear panel view — 6×2.5G Intel i225-V fanless firewall

CE FCC Class A RoHS

Hardware Specs

Full Specifications

Processor & Memory

Processor	Intel Core i3-10110U (2C/4T, 2.1–4.1 GHz)
Cache	4 MB Intel Smart Cache
RAM	8 GB DDR4 2666 (1× SO-DIMM, expandable to 64 GB)
BIOS	AMI UEFI BIOS
Graphics	Intel UHD Graphics

Networking

LAN Ports	6 × Intel i225-V 2.5G Ethernet
Optional PoE	PoE on LAN3–LAN6 (optional)
Console	1 × RJ45 COM serial port

Storage & Display

Primary Storage	128 GB M.2 2280 SATA SSD (included)
Secondary Bay	1 × 2.5″ SATA bay (RAID 0/1 with M.2)
Display	1 × DP + 1 × HDMI (dual display, 4K@60Hz)
USB	3 × USB 3.0 + 3 × USB 2.0 (front)

Expansion

M.2 M-Key	NVMe / SATA SSD
M.2 E-Key	WiFi / Bluetooth
M.2 B-Key	4G / 5G modem (WAN failover)

Physical

Chassis	Aluminium, fanless passive cooling
Form Factor	Desktop (186 × 126.5 × 66 mm)
Weight	1.3 kg
Power	DC 12V, 60W adapter (included)
Operating Temp	0°C to +50°C
Humidity	0–95% non-condensing

Security & Certifications

TPM	TPM 2.0
Watchdog	Hardware watchdog (Levels 0–255)
RAID	RAID 0/1 across M.2 + 2.5″
Certifications	CE, FCC Class A, RoHS
Warranty	1 Year

Key Features

Why Choose the TPL-210

Six 2.5G Intel NICs

Six Intel i225-V ports give you flexible WAN+LAN segmentation — run dual WAN, DMZ, guest VLAN, and management interfaces simultaneously.

5G / 4G Cellular Failover

M.2 B-Key slot accepts standard 5G/4G modem cards for instant cellular WAN failover — keep your network up even when the fibre fails.

Optional PoE on LAN3–6

Power your APs, IP cameras, and VoIP phones directly from the firewall with optional PoE — eliminate separate PoE switches for small deployments.

RAID 0/1 Storage

Mirror your M.2 SSD to the 2.5″ bay in RAID 1 — protect your firewall configuration and logs with hardware-level redundancy.

Fanless Silent Operation

Full aluminium passive cooling — no fans, no noise, no vibration. Ideal for open-office deployments, reception desks, and noise-sensitive environments.

Up to 64 GB RAM

Single SO-DIMM slot expandable to 64 GB — run pfSense with Suricata IDS/IPS, Squid proxy, and ntopng simultaneously without RAM constraints.

Target Applications

Multi-WAN Firewall VPN Gateway PoE Network Edge SD-WAN Edge Cellular Failover SMB Network Branch Office
